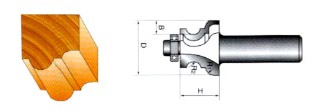

DJT1001 EDGE MOULDING BIT

编号	规格	直径	半径1	半径2	切削厚度	切削宽度
Part  NO.	Size	D	R1	R2	H	B
DJT10010904	1/4×9/16	20.62	1.98	1.98	14.28	3.96
DJT10011004	1/4×5/8	22.22	2.38	2.38	15.90	4.76
DJT10011204	1/4×3/4	25.50	3.20	3.20	19.05	6.40
DJT10011404	1/4×7/8	31.75	3.96	3.96	22.20	7.92
DJT10010908	1/2×9/16	20.62	1.98	1.98	14.28	3.96
DJT10011008	1/2×5/8	22.22	2.38	2.38	15.90	4.76
DJT10011208	1/2×3/4	25.50	3.20	3.20	19.05	6.40
DJT10011408	1/2×7/8	31.75	3.96	3.96	22.20	7.92
DJT10011608	1/2×1	34.94	4.76	4.76	25.40	9.52
DJT10011808	1/2×1-1/8	38.10	5.55	5.55	28.60	11.10
DJT10011908	1/2×1-3/16	39.70	5.95	5.95	30.16	11.90
DJT10012008	1/2×1-1/4	41.30	6.35	6.35	31.75	12.70
DJT10012208	1/2×1-3/8	44.46	7.14	7.14	34.90	14.28
DJT10012408	1/2×1-1/2	47.70	7.95	7.95	38.10	15.90
DJT10012608	1/2×1-5/8	54.00	9.52	9.52	41.27	19.05
DJT10012808	1/2×1-3/4	60.30	11.10	11.10	44.45	22.20
DJT10013208	1/2×2	66.70	12.70	12.70	50.80	25.40
