DJTOL-20A

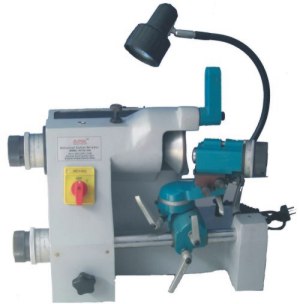

For high precision work and better efficiency , it is desirable to sharpen your cutters by cutter grinder than simply by hand. TheDJTOL-20A cutter grinder is specially designed for this purpose. Other than surface grinding the cutter grinder can sharpen any cutter to whatever shape you want your cutter to be. Highly efficient, save and easy to handle will surely solve the problem of sharpening cutters for you and thus improve your productivity.
 |
1 |
Grinding wheel |
Diameter |
-22602100mm |
|
|
Thickness |
50mm | ||
|
|
Hole diameter |
-2260220mm | ||
|
2 |
|
Spindle speed |
5200rpm | |
|
3 |
|
Collet capacity |
-226023-16mm | |
|
|
4 |
|
Longitudinal traverse of index head carrier |
140mm |
|
5 |
|
Fine longitudinal adjustment travel of index head carrier |
18mm | |
|
6 |
|
Fine longitudinal adjustment travel of index head carrier |
6mm | |
|
|
7 |
|
Taper angle |
0-180-24093 |
|
8 |
|
Negative taper angle |
0-52-24093 | |
|
9 |
|
Relief angle |
0-44-24093 | |
|
10 |
|
Power |
0.30kw | |
|
|
Speed |
2810rrmp | ||
|
|
|
Voltage Single-phase |
220v | |
|
|
Frequency |
50HZ | ||
|
11 |
|
Gross weight (kg) |
55kg | |
|
|
|
Packing dimensions (cm) |
48x39x36.5cm | |
|
|
a standard ccessories |
Drive belt |
1PCS | |
|
Tools |
1 SETS | |||
|
Diamond Wheel 320# |
1pcs | |||
|
Collect |
3.175,4,6 | |||
|
Lamp |
1set |
COLLETS PRICE 100RMB,
DIAMOND WHEEL PRICE 150RMB
