Double flutes spiral slope flat ball nose bits

适合: 密度板，实木、硬木、金属材料等浮雕加工，使用寿命长，加工效果好
Good for: Fine three-dimensional relief on Acrylic, PVC, MDF, Hardwood, Aluminum and so on.
订购产品须在编号前加材质编号:N ,A, AA, 3A						Material: SOLID CARBIDE,硬质合金（钨钢）
Products must be ordered by adding the Materials Code Number like N, A, AA and 3A .						参考价格：人民币 PRICE(RMB)

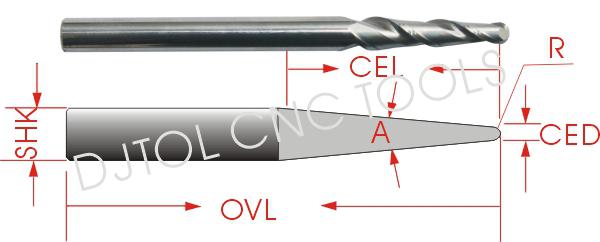

编号	刀尖	刃长	角度	柄径	总长	N系列	A系列	AA系列	3A系列
PART NO	2R	CEL	A	SHK	OVL	N series	A series	AA series	3A series
X2QX3.1510	1.0	15		3.175	50	*******	*******	*******	*******
X2QX42010	1.0	20		4	50	*******	*******	*******	*******
X2QX62010	1.0	20		6	50	*******	*******	*******	*******
X2QX63010	1.0	30		6	60	*******	*******	*******	*******
X2QX63020	2.0	30		6	60	*******	*******	*******	*******
X2QX63010	1.0	30		6	70	*******	*******	*******	*******
X2QX63015	1.5	30		6	70	*******	*******	*******	*******
X2QX63020	2.0	30		6	70	*******	*******	*******	*******
X2QX63030	3.0	30		6	70	*******	*******	*******	*******
X2QX64010	1.0	40		6	80	*******	*******	*******	*******
X2QX64020	2.0	40		6	80	*******	*******	*******	*******
X2QX64030	3.0	40		6	80	*******	*******	*******	*******
X2QX83010	1.0	30		8	75	*******	*******	*******	*******
X2QX83020	2.0	30		8	75	*******	*******	*******	*******
X2QX83030	3.0	30		8	75	*******	*******	*******	*******
X2QX84010	1.0	40		8	85	*******	*******	*******	*******
X2QX84020	2.0	40		8	85	*******	*******	*******	*******
X2QX84030	3.0	40		8	85	*******	*******	*******	*******
X2QX86020	2.0	60		8	110	*******	*******	*******	*******
X2QX103520	2.0	35		10	80	*******	*******	*******	*******
X2QX103530	3.0	35		10	80	*******	*******	*******	*******
X2QX103540	4.0	35		10	80	*******	*******	*******	*******
X2QX104530	3.0	45		10	90	*******	*******	*******	*******
X2QX104540	4.0	45		10	90	*******	*******	*******	*******
X2QX125020	2.0	50		12	100	*******	*******	*******	*******
X2QX125030	3.0	50		12	100	*******	*******	*******	*******
X2QX126030	3.0	60		12	120	*******	*******	*******	*******
X2QX1210020	2.0	100		12	150	*******	*******	*******	*******
