DOUBLE FLUTES SPIRAL WITHOUT LIGAMENT BITS

适用:压克力，PVC，密度板
Good for: Acrylic, PVC, MDF.
订购产品须在编号前加材质编号: N,A, AA, 3A					Material: SOLID CARBIDE,硬质合金（钨钢）
Products must be ordered by adding the Materials Code Number like N, A, AA and 3A .					参考价格：人民币 PRICE(RMB)
编号	刃径	刃长	柄径	总长	N系列	A系列	AA系列	3A系列

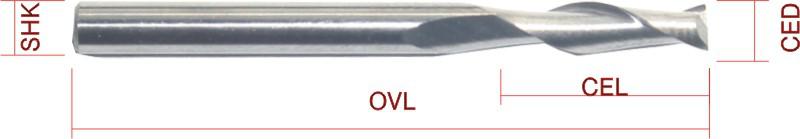

PART NO	CED	CEL	SHK	OVL	N series	A series	AA series	3A series
Y2LX3.1.506	1.5	6	3.175	38	*******	*******	*******	*******
Y2LX3.208	2.0	8	3.175	38	*******	*******	*******	*******
Y2LX3.212	2.0	12	3.175	38	*******	*******	*******	*******
Y2LX3.08	3.175	8	3.175	38	*******	*******	*******	*******
Y2LX3.10	3.175	10	3.175	38	*******	*******	*******	*******
Y2LX3.12	3.175	12	3.175	38	*******	*******	*******	*******
Y2LX3.15	3.175	15	3.175	38	*******	*******	*******	*******
Y2LX3.17	3.175	17	3.175	38	*******	*******	*******	*******
Y2LX3.20	3.175	20	3.175	45	*******	*******	*******	*******
Y2LX3.22	3.175	22	3.175	45	*******	*******	*******	*******
Y2LX3.25	3.175	25	3.175	50	*******	*******	*******	*******
Y2LX3.28	3.175	28	3.175	50	*******	*******	*******	*******
Y2LX3.32	3.175	32	3.175	60	*******	*******	*******	*******
Y2LX3.42	3.175	42	3.175	70	*******	*******	*******	*******
Y2LX412	4	12	4	40	*******	*******	*******	*******
Y2LX417	4	17	4	40	*******	*******	*******	*******
Y2LX422	4	22	4	45	*******	*******	*******	*******
Y2LX425	4	25	4	50	*******	*******	*******	*******
Y2LX428	4	28	4	55	*******	*******	*******	*******
Y2LX432	4	32	4	60	*******	*******	*******	*******
Y2LX442	4	42	4	70	*******	*******	*******	*******
Y2LX452	4	52	4	80	*******	*******	*******	*******
Y2LX617	6	17	6	50	*******	*******	*******	*******
Y2LX622	6	22	6	50	*******	*******	*******	*******
Y2LX625	6	25	6	55	*******	*******	*******	*******
Y2LX628	6	28	6	55	*******	*******	*******	*******
Y2LX632	6	32	6	60	*******	*******	*******	*******
Y2LX642	6	42	6	70	*******	*******	*******	*******
Y2LX652	6	52	6	80	*******	*******	*******	*******
Y2LX672	6	72	6	100	*******	*******	*******	*******
Y2LX6.22	6.35	22	6.35	50	*******	*******	*******	*******
Y2LX825	8	25	8	60	*******	*******	*******	*******
Y2LX835	8	35	8	80	*******	*******	*******	*******
Y2LX845	8	45	8	90	*******	*******	*******	*******
