DOUBLE FLUTES SPRIAL BALL BITS

适用: 压克力，PVC，密度板，硬木、铝合金、铁、不锈钢等
Good for: Acrylic, PVC, MDF, Hard wood， Aluminum alloy, iron, stainless steel and so on.
订购产品须在编号前加材质编号:N ,A, AA, 3A					Material: SOLID CARBIDE,硬质合金（钨钢）
Products must be ordered by adding the Materials Code Number like N, A, AA and 3A .					参考价格：人民币 PRICE(RMB)
编号	刃径	刃长	柄径	总长	N系列	A系列	AA系列	3A系列

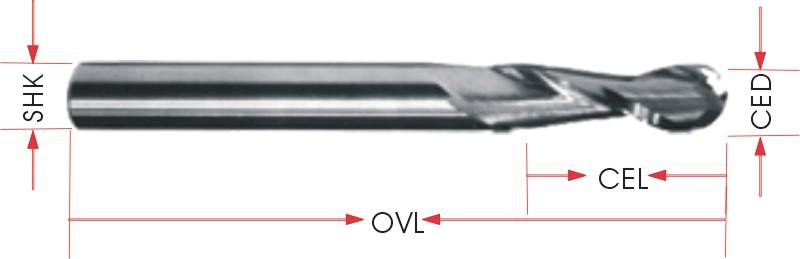

PART NO	CED	CEL	SHK	OVL	N series	A series	AA series	3A series
2QX3.0.803	0.8	3	3.175	38	*******	*******	*******	*******
2QX3.104	1.0	4	3.175	38	*******	*******	*******	*******
2QX3.105	1.0	5	3.175	38	*******	*******	*******	*******
2QX3.1.204	1.2	4	3.175	38	*******	*******	*******	*******
2QX3.1.206	1.2	6	3.175	38	*******	*******	*******	*******
2QX3.1.210	1.2	10	3.175	38	*******	*******	*******	*******
2QX3.1.505	1.5	5	3.175	38	*******	*******	*******	*******
2QX3.1.507	1.5	7	3.175	38	*******	*******	*******	*******
2QX3.1.512	1.5	12	3.175	38	*******	*******	*******	*******
2QX3.206	2.0	6	3.175	38	*******	*******	*******	*******
2QX3.208	2.0	8	3.175	38	*******	*******	*******	*******
2QX3.212	2.0	12	3.175	38	*******	*******	*******	*******
2QX3.215	2.0	15	3.175	38	*******	*******	*******	*******
2QX3.217	2.0	17	3.175	45	*******	*******	*******	*******
2QX3.222	2.0	22	3.175	50	*******	*******	*******	*******
2QX3.2.508	2.5	8	3.175	38	*******	*******	*******	*******
2QX3.2.510	2.5	10	3.175	38	*******	*******	*******	*******
2QX3.2.512	2.5	12	3.175	38	*******	*******	*******	*******
2QX3.2.517	2.5	17	3.175	45	*******	*******	*******	*******
2QX3.2.522	2.5	22	3.175	50	*******	*******	*******	*******
2QX3.06	3.175	6	3.175	38	*******	*******	*******	*******
2QX3.08	3.175	8	3.175	38	*******	*******	*******	*******
2QX3.12	3.175	12	3.175	38	*******	*******	*******	*******
2QX3.15	3.175	15	3.175	38	*******	*******	*******	*******
2QX3.17	3.175	17	3.175	38	*******	*******	*******	*******
2QX3.20	3.175	20	3.175	45	*******	*******	*******	*******
2QX3.22	3.175	22	3.175	45	*******	*******	*******	*******
2QX3.25	3.175	25	3.175	50	*******	*******	*******	*******
2QX3.28	3.175	28	3.175	55	*******	*******	*******	*******
2QX3.32	3.175	32	3.175	60	*******	*******	*******	*******
2QX3.42	3.175	42	3.175	70	*******	*******	*******	*******
2QX3.52	3.175	52	3.175	80	*******	*******	*******	*******
2QX412	4	12	4	40	*******	*******	*******	*******
2QX417	4	17	4	40	*******	*******	*******	*******
2QX422	4	22	4	50	*******	*******	*******	*******
2QX425	4	25	4	50	*******	*******	*******	*******
2QX428	4	28	4	55	*******	*******	*******	*******
2QX432	4	32	4	60	*******	*******	*******	*******
2QX442	4	42	4	70	*******	*******	*******	*******
2QX452	4	52	4	80	*******	*******	*******	*******
2QX517	5	17	5	50	*******	*******	*******	*******
2QX522	5	22	5	50	*******	*******	*******	*******
2QX6312	3.0	12	6	50	*******	*******	*******	*******
2QX6317	3.0	17	6	50	*******	*******	*******	*******
2QX6417	4.0	17	6	50	*******	*******	*******	*******
2QX6422	4.0	22	6	50	*******	*******	*******	*******
2QX6522	5.0	22	6	50	*******	*******	*******	*******
2QX612	6	12	6	50	*******	*******	*******	*******
2QX617	6	17	6	50	*******	*******	*******	*******
2QX622	6	22	6	50	*******	*******	*******	*******
2QX625	6	25	6	55	*******	*******	*******	*******
2QX628	6	28	6	55	*******	*******	*******	*******
2QX632	6	32	6	60	*******	*******	*******	*******
2QX642	6	42	6	80	*******	*******	*******	*******
2QX652	6	52	6	90	*******	*******	*******	*******
2QX672	6	72	6	110	*******	*******	*******	*******
2QX6.17	6.35	17	6.35	50	*******	*******	*******	*******
2QX6.22	6.35	22	6.35	50	*******	*******	*******	*******
2QX6.25	6.35	25	6.35	55	*******	*******	*******	*******
2QX6.32	6.35	32	6.35	70	*******	*******	*******	*******
2QX825	8	25	8	60	*******	*******	*******	*******
2QX835	8	35	8	80	*******	*******	*******	*******
2QX845	8	45	8	90	*******	*******	*******	*******
2QX1025	10	25	10	60	*******	*******	*******	*******
2QX1035	10	35	10	80	*******	*******	*******	*******
2QX1045	10	45	10	90	*******	*******	*******	*******
2QX1235	12	35	12	80	*******	*******	*******	*******
2QX1245	12	45	12	90	*******	*******	*******	*******
2QX1255	12	55	12	100	*******	*******	*******	*******
2QX1275	12	75	12	120	*******	*******	*******	*******
2QX12100	12	100	12	150	*******	*******	*******	*******
2QX12.35	12.7	35	12.7	80	*******	*******	*******	*******
2QX12.45	12.7	45	12.7	90	*******	*******	*******	*******
2QX12.55	12.7	55	12.7	100	*******	*******	*******	*******
2QX12.75	12.7	75	12.7	120	*******	*******	*******	*******
2QX12.100	12.7	100	12.7	150	*******	*******	*******	*******
2QX1645	16	45	16	110	*******	*******	*******	*******
2QX1655	16	55	16	130	*******	*******	*******	*******
2QX1675	16	75	16	150	*******	*******	*******	*******
2QX16100	16	100	16	180	*******	*******	*******	*******
2QX2075	20	75	20	150	*******	*******	*******	*******
2QX20100	20	100	20	180	*******	*******	*******	*******
