DOUBLE LARGE FLUTES SPIRAL BITS FOR MDF

适用:中低密度板，PVC，压克力等
Good for: Low or Middle MDF, PVC, Acrylic and so on.
订购产品须在编号前加材质编号: N,A, AA, 3A					Material: SOLID CARBIDE,硬质合金（钨钢）
Products must be ordered by adding the Materials Code Number like N，A, A, AA and 3A .					参考价格：人民币 PRICE(RMB)
编号	刃径	刃长	柄径	总长	N系列	A系列	AA系列	3A系列

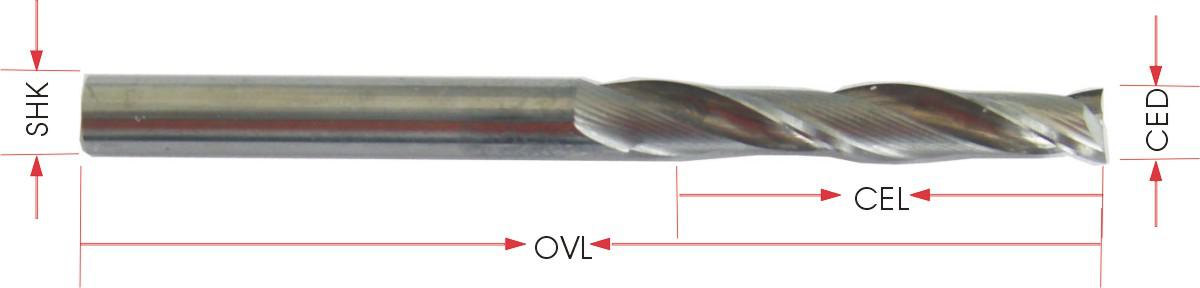

PART NO	CED	CEL	SHK	OVL	N series	A series	AA series	3A series
M2LX3.12	3.175	12	3.175	38	*******	*******	*******	*******
M2LX3.15	3.175	15	3.175	38	*******	*******	*******	*******
M2LX3.17	3.175	17	3.175	38	*******	*******	*******	*******
M2LX3.22	3.175	22	3.175	45	*******	*******	*******	*******
M2LX412	4	12	4	40	*******	*******	*******	*******
M2LX415	4	15	4	40	*******	*******	*******	*******
M2LX417	4	17	4	40	*******	*******	*******	*******
M2LX422	4	22	4	45	*******	*******	*******	*******
M2LX425	4	25	4	50	*******	*******	*******	*******
M2LX428	4	28	4	50	*******	*******	*******	*******
M2LX432	4	32	4	60	*******	*******	*******	*******
M2LX442	4	42	4	70	*******	*******	*******	*******
M2LX452	4	52	4	80	*******	*******	*******	*******
M2LX517	5	17	5	45	*******	*******	*******	*******
M2LX522	5	22	5	50	*******	*******	*******	*******
M2LX617	6	17	6	45	*******	*******	*******	*******
M2LX622	6	22	6	50	*******	*******	*******	*******
M2LX625	6	25	6	55	*******	*******	*******	*******
M2LX628	6	28	6	55	*******	*******	*******	*******
M2LX632	6	32	6	60	*******	*******	*******	*******
M2LX635	6	35	6	70	*******	*******	*******	*******
M2LX642	6	42	6	80	*******	*******	*******	*******
M2LX652	6	52	6	90	*******	*******	*******	*******
M2LX672	6	72	6	110	*******	*******	*******	*******
M2LX6.22	6.35	22	6.35	50	*******	*******	*******	*******
M2LX825	8	25	8	60	*******	*******	*******	*******
M2LX835	8	32	8	75	*******	*******	*******	*******
M2LX845	8	45	8	90	*******	*******	*******	*******
M2LX1025	10	25	10	70	*******	*******	*******	*******
M2LX1035	10	35	10	80	*******	*******	*******	*******
M2LX1045	10	45	10	90	*******	*******	*******	*******
M2LX1235	12.7	35	12.7	80	*******	*******	*******	*******
M2LX1245	12.7	45	12.7	90	*******	*******	*******	*******
M2LX1255	12.7	55	12.7	100	*******	*******	*******	*******
M2LX1645	16	45	16	100	*******	*******	*******	*******
M2LX1655	16	55	16	110	*******	*******	*******	*******
M2LX2075	20	75	20	150	*******	*******	*******	*******
