DOUBLE STRAIGHE FLUTES BALL BITS

适用: 密度板，多层板，夹板等
Good for: MDF, Multilayer board, Plywood and so on.
订购产品须在编号前加材质编号:N,A, AA, 3A					Material: SOLID CARBIDE,硬质合金（钨钢）
Products must be ordered by adding the Materials Code Number like N,A, AA and 3A .					参考价格：人民币 PRICE(RMB)
编号	刃径	刃长	柄径	总长	N系列	A系列	AA系列	3A系列

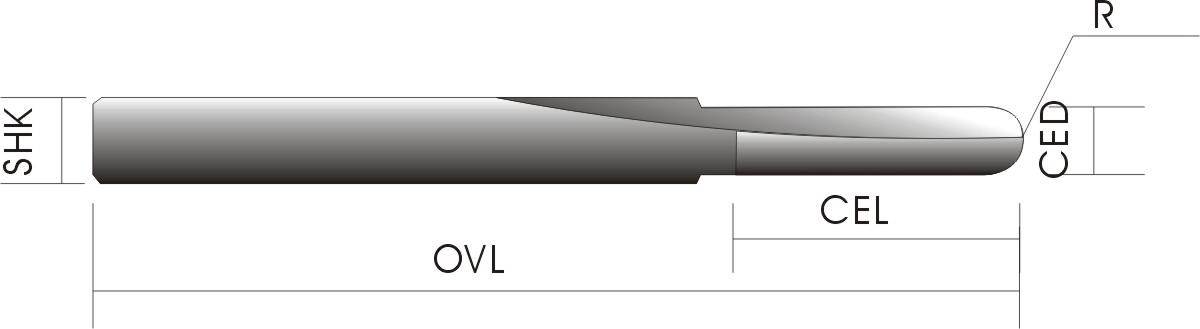

PART NO	2R	CEL	SHK	OVL	N series	A series	AA series	3A series
2ZQX3.103	1.0	3	3.175	38	*******	*******	*******	*******
2ZQX3.1.204	1.2	4	3.175	38	*******	*******	*******	*******
2ZQX3.1.505	1.5	5	3.175	38	*******	*******	*******	*******
2ZQX3.208	2.0	8	3.175	38	*******	*******	*******	*******
2ZQX3.10	3.175	10	3.175	38	*******	*******	*******	*******
2ZQX3.12	3.175	12	3.175	38	*******	*******	*******	*******
2ZQX3.17	3.175	17	3.175	38	*******	*******	*******	*******
2ZQX3.22	3.175	22	3.175	45	*******	*******	*******	*******
2ZQX412	4	12	4	40	*******	*******	*******	*******
2ZQX417	4	17	4	40	*******	*******	*******	*******
2ZQX422	4	22	4	45	*******	*******	*******	*******
2ZQX425	4	25	4	50	*******	*******	*******	*******
2ZQX612	6	12	6	45	*******	*******	*******	*******
2ZQX617	6	17	6	45	*******	*******	*******	*******
2ZQX622	6	22	6	50	*******	*******	*******	*******
2ZQX625	6	25	6	55	*******	*******	*******	*******
2ZQX825	8	25	8	60	*******	*******	*******	*******
2ZQX835	8	35	8	80	*******	*******	*******	*******
2ZQX845	8	45	8	90	*******	*******	*******	*******
2ZQX855	8	55	8	100	*******	*******	*******	*******
2ZQX865	8	65	8	110	*******	*******	*******	*******
2ZQX875	8	75	8	120	*******	*******	*******	*******
2ZQX8100	8	100	8	150	*******	*******	*******	*******
2ZQX1025	10	25	10	60	*******	*******	*******	*******
2ZQX1035	10	35	10	80	*******	*******	*******	*******
2ZQX1045	10	45	10	90	*******	*******	*******	*******
2ZQX1055	10	55	10	100	*******	*******	*******	*******
2ZQX1065	10	65	10	110	*******	*******	*******	*******
2ZQX1075	10	75	10	120	*******	*******	*******	*******
2ZQX10100	10	100	10	150	*******	*******	*******	*******
2ZQX1235	12	35	12	80	*******	*******	*******	*******
2ZQX1245	12	45	12	90	*******	*******	*******	*******
2ZQX1255	12	55	12	100	*******	*******	*******	*******
2ZQX1265	12	65	12	110	*******	*******	*******	*******
2ZQX1275	12	75	12	120	*******	*******	*******	*******
2ZQX12100	12	100	12	150	*******	*******	*******	*******
