DOWN CUT ONE FLUTE SPIRAL BITS

适用:密度板，夹板，软木，PVC等
Good for: MDF, Plywood, Soft wood, PVC and so on.
订购产品须在编号前加材质编号:A, AA, 3A					Material: SOLID CARBIDE,硬质合金（钨钢）
Products must be ordered by adding the Materials Code Number like A, AA and 3A .					参考价格：人民币 PRICE(RMB)
编号	刃径	刃长	柄径	总长	A系列	AA系列	3A系列

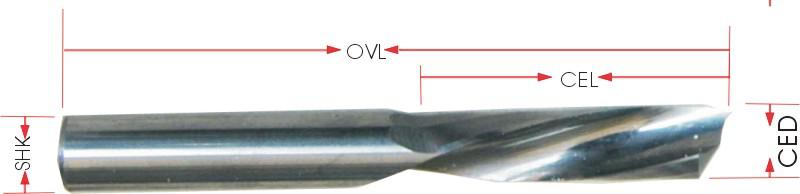

PART NO	CED	CEL	SHK	OVL	A series	AA series	3A series
1LXD3.102	1.0	2	3.175	40	*******	*******	*******
1LXD3.103	1.0	3	3.175	40	*******	*******	*******
1LXD3.1.503	1.5	3	3.175	40	*******	*******	*******
1LXD3.204	2.0	4	3.175	40	*******	*******	*******
1LXD3.206	2.0	6	3.175	40	*******	*******	*******
1LXD3.208	2.0	8	3.175	40	*******	*******	*******
1LXD3.06	3.175	6	3.175	40	*******	*******	*******
1LXD3.08	3.175	8	3.175	40	*******	*******	*******
1LXD3.10	3.175	10	3.175	40	*******	*******	*******
1LXD3.12	3.175	12	3.175	40	*******	*******	*******
1LXD3.15	3.175	15	3.175	40	*******	*******	*******
1LXD3.17	3.175	17	3.175	45	*******	*******	*******
1LXD3.22	3.175	22	3.175	50	*******	*******	*******
1LXD408	4	8	4	45	*******	*******	*******
1LXD412	4	12	4	45	*******	*******	*******
1LXD417	4	17	4	50	*******	*******	*******
1LXD422	4	22	4	50	*******	*******	*******
1LXD512	5	12	5	50	*******	*******	*******
1LXD517	5	17	5	50	*******	*******	*******
1LXD522	5	22	5	50	*******	*******	*******
1LXD612	6	12	6	50	*******	*******	*******
1LXD617	6	17	6	50	*******	*******	*******
1LXD622	6	22	6	55	*******	*******	*******
1LXD6312	3.0	12	6	50	*******	*******	*******
1LXD6317	3.0	17	6	50	*******	*******	*******
1LXD6412	4.0	12	6	50	*******	*******	*******
1LXD6417	4.0	17	6	50	*******	*******	*******
1LXD6522	5.0	22	6	55	*******	*******	*******
1LXD820	8	20	8	75	*******	*******	*******
1LXD825	8	25	8	80	*******	*******	*******
1LXD835	8	35	8	90	*******	*******	*******
1LXD1025	10	25	10	80	*******	*******	*******
1LXD1035	10	35	10	90	*******	*******	*******
1LXD1045	10	45	10	100	*******	*******	*******
1LXD1235	12	35	12	90	*******	*******	*******
1LXD1245	12	45	12	100	*******	*******	*******
1LXD1255	12	55	12	110	*******	*******	*******
