Four flutes end mills

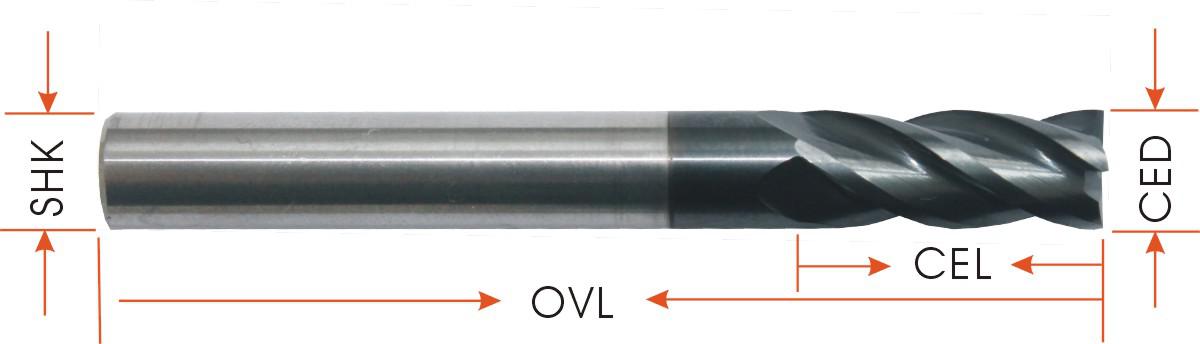

A---银黑色

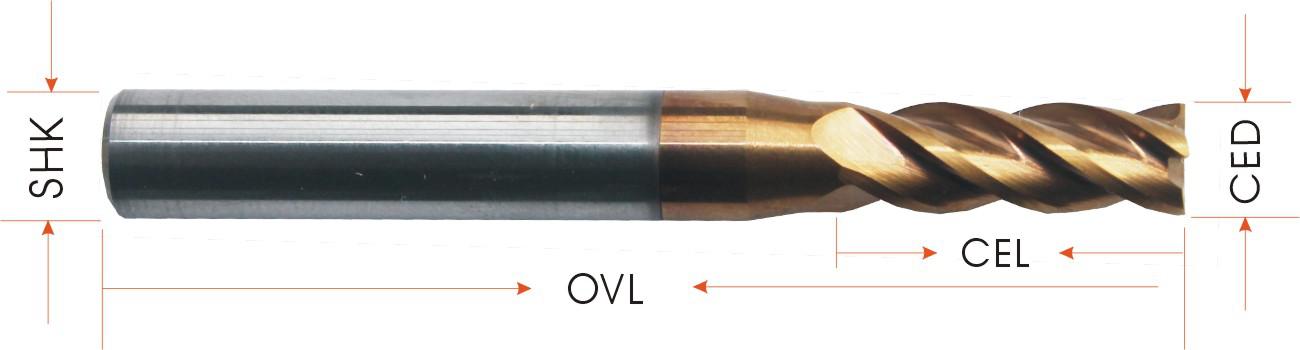

AA---古铜色

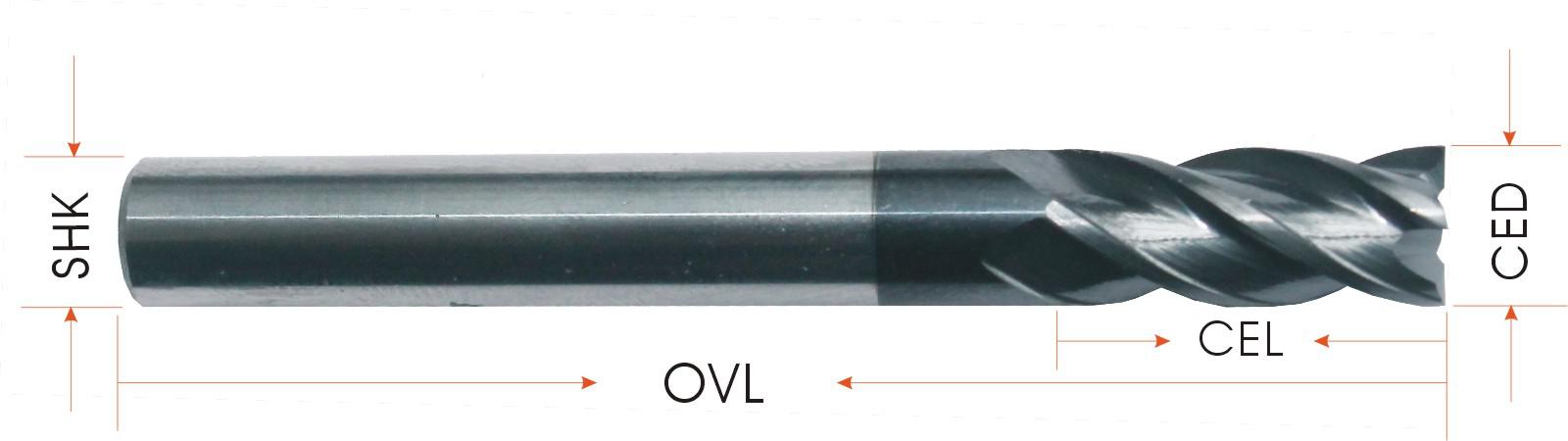

3A---黑色
|
A 适合加工硬度45HRC，AA 适合加工硬度50HRC，3A适合加工硬度HRC60 | |||||||
|
A series are good for processing rigidity up to 45 HRC, AA series are good for processing rigidity up to 50HRC, 3A are good for processing rigidity up to HRC60. | |||||||
|
订购产品须在编号前加材质编号:A, AA, 3A |
Material: SOLID CARBIDE,硬质合金（钨钢） | ||||||
|
Products must be ordered by adding the Materials Code Number like A, AA and 3A. |
参考价格：人民币 PRICE(RMB) | ||||||
|
编号 |
刃径 |
刃长 |
柄径 |
总长 |
A系列 50° |
AA系列 55° |
3A系列 60° |
|
PART NO |
CED |
CEL |
SHK |
OVL |
A series 50° |
AA series 55° |
3A series 60° |
|
S4LX01 |
1.0 |
3 |
4.0 |
50 |
*** |
*** |
*** |
|
S4LX015 |
1.5 |
4 |
4.0 |
50 |
*** |
*** |
*** |
|
S4LX02 |
2.0 |
6 |
4.0 |
50 |
*** |
*** |
*** |
|
S4LX025 |
2.5 |
8 |
4.0 |
50 |
*** |
*** |
*** |
|
S4LX03 |
3.0 |
8 |
4.0 |
50 |
*** |
*** |
*** |
|
S4LX035 |
3.5 |
10 |
4.0 |
50 |
*** |
*** |
*** |
|
S4LX04 |
4.0 |
10 |
4.0 |
50 |
*** |
*** |
*** |
|
S4LX04L-A |
4.0 |
15 |
4.0 |
75 |
*** |
*** |
*** |
|
S4LX04L-B |
4.0 |
20 |
4.0 |
100 |
*** |
*** |
*** |
|
S4LX05 |
5.0 |
13 |
6.0 |
50 |
*** |
*** |
*** |
|
S4LX06 |
6.0 |
15 |
6.0 |
50 |
*** |
*** |
*** |
|
S4LX06L-A |
6.0 |
20 |
6.0 |
75 |
*** |
*** |
*** |
|
S4LX06L-B |
6.0 |
30 |
6.0 |
100 |
*** |
*** |
*** |
|
S4LX06L-C |
6.0 |
35 |
6.0 |
150 |
*** |
*** |
*** |
|
S4LX08 |
8.0 |
20 |
8.0 |
60 |
*** |
*** |
*** |
|
S4LX08L-A |
8.0 |
25 |
8.0 |
75 |
*** |
*** |
*** |
|
S4LX08L-B |
8.0 |
35 |
8.0 |
100 |
*** |
*** |
*** |
|
S4LX08L-C |
8.0 |
40 |
8.0 |
150 |
*** |
*** |
*** |
|
S4LX10 |
10.0 |
25 |
10.0 |
75 |
*** |
*** |
*** |
|
S4LX10L-B |
10.0 |
40 |
10.0 |
100 |
*** |
*** |
*** |
|
S4LX10L-C |
10.0 |
55 |
10.0 |
150 |
*** |
*** |
*** |
|
S4LX12 |
12.0 |
30 |
12.0 |
75 |
*** |
*** |
*** |
|
S4LX12L-B |
12.0 |
45 |
12.0 |
100 |
*** |
*** |
*** |
|
S4LX12L-C |
12.0 |
60 |
12.0 |
150 |
*** |
*** |
*** |
|
S4LX14 |
14.0 |
35 |
14.0 |
80 |
*** |
*** |
*** |
|
S4LX14L-B |
14.0 |
45 |
14.0 |
100 |
*** |
*** |
*** |
|
S4LX14L-C |
14.0 |
60 |
14.0 |
150 |
*** |
*** |
*** |
|
S4LX16 |
16.0 |
45 |
16.0 |
100 |
*** |
*** |
*** |
|
S4LX16L-C |
16.0 |
70 |
16.0 |
150 |
*** |
*** |
*** |
|
S4LX18 |
18.0 |
45 |
18.0 |
100 |
*** |
*** |
*** |
|
S4LX18L-C |
18.0 |
70 |
18.0 |
150 |
*** |
*** |
*** |
|
S4LX20 |
20.0 |
45 |
20.0 |
100 |
*** |
*** |
*** |
|
S4LX20L-C |
20.0 |
70 |
20.0 |
150 |
*** |
*** |
*** |
