Long cel flat bottom engraving bits

适用：红木，软木，PVC等中等深浮雕
Good for: Medium mezzo rilievo on PVC,rosewood .hardwood and so on.
购产品须在编号前加材质编号:N,A, AA, 3A						硬质合金
Products must be ordered by adding the Materials Code Number like N,A,AA and 3A .						参考价格：人民币 PRICE(RMB)
编号	刀尖	角度	刃长	柄径	总长	N系列	A系列	AA系列	3A系列

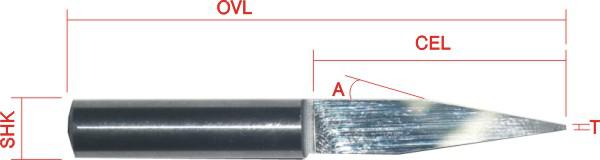

PART NO	T	2A	CEL	SHK	OVL	N Series	A series	AA series	3A series
J3.250318	0.3	25	18	3.175	38	*******	*******	*******	*******
J3.250418	0.4	25	18	3.175	38	*******	*******	*******	*******
J3.250518	0.5	25	18	3.175	38	*******	*******	*******	*******
J3.250618	0.6	25	18	3.175	38	*******	*******	*******	*******
J3.300318	0.3	30	18	3.175	38	*******	*******	*******	*******
J3.300418	0.4	30	18	3.175	38	*******	*******	*******	*******
J3.300518	0.5	30	18	3.175	38	*******	*******	*******	*******
J3.300618	0.6	30	18	3.175	38	*******	*******	*******	*******
J4250320	0.3	25	20	4	45	*******	*******	*******	*******
J4250420	0.4	25	20	4	45	*******	*******	*******	*******
J4250520	0.5	25	20	4	45	*******	*******	*******	*******
J4250620	0.6	25	20	4	45	*******	*******	*******	*******
J4250820	0.8	25	20	4	45	*******	*******	*******	*******
J4300320	0.3	30	20	4	45	*******	*******	*******	*******
J4300420	0.4	30	20	4	45	*******	*******	*******	*******
J4300520	0.5	30	20	4	45	*******	*******	*******	*******
J4300620	0.6	30	20	4	45	*******	*******	*******	*******
J4300820	0.8	30	20	4	45	*******	*******	*******	*******
J6250325	0.3	25	25	6	55	*******	*******	*******	*******
J6250425	0.4	25	25	6	55	*******	*******	*******	*******
J6250525	0.5	25	25	6	55	*******	*******	*******	*******
J6250625	0.6	25	25	6	55	*******	*******	*******	*******
J6250825	0.8	25	25	6	55	*******	*******	*******	*******
J6251025	1.0	25	25	6	55	*******	*******	*******	*******
J6300325	0.3	30	25	6	55	*******	*******	*******	*******
J6300425	0.4	30	25	6	55	*******	*******	*******	*******
J6300525	0.5	30	25	6	55	*******	*******	*******	*******
J6300625	0.6	30	25	6	55	*******	*******	*******	*******
J6300825	0.8	30	25	6	55	*******	*******	*******	*******
J6301025	1.0	30	25	6	55	*******	*******	*******	*******
J6300430	0.4	30	30	6	60	*******	*******	*******	*******
J8201525	1.5	20	25	8	60	*******	*******	*******	*******
J8300425120	0.4	30	25	8	120	*******	*******	*******	*******
J10301025	1.0	30	25	10	75	*******	*******	*******	*******
J12300425180	0.4	30	25	12	180	*******	*******	*******	*******
