ONE FLUTE SPIRAL BITS FOR ACRYLIC

适合：特适合压克力加工，表面光洁度高，免修刮。选用进口超微粒钨钢。
Good for: special for Acrylic,High surface finish, undergraduate degree scraping.
订购产品须在编号前加材质编号:A, AA, 3A					Material: SOLID CARBIDE,硬质合金（钨钢）
Products must be ordered by adding the Materials Code Number like A, AA and 3A .					参考价格：人民币 PRICE(RMB)

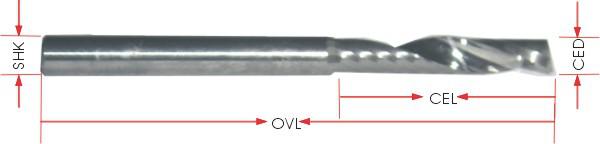

型号	刃径	刃长	柄径	总长	A系列	AA系列	3A系列
PART NO	CED	CEL	SHK	OVL	A series	AA series	3A series
Y1LX3.0.803	0.8	3	3.175	40	*******	*******	*******
Y1LX3.103	1.0	3	3.175	40	*******	*******	*******
Y1LX3.104	1.0	4	3.175	40	*******	*******	*******
Y1LX3.105	1.0	5	3.175	40	*******	*******	*******
Y1LX3.1.504	1.5	4	3.175	40	*******	*******	*******
Y1LX3.1.506	1.5	6	3.175	40	*******	*******	*******
Y1LX3.1.508	1.5	8	3.175	40	*******	*******	*******
Y1LX3.1.510	1.5	10	3.175	40	*******	*******	*******
Y1LX3.1.512	1.5	12	3.175	40	*******	*******	*******
Y1LX3.205	2.0	5	3.175	40	*******	*******	*******
Y1LX3.208	2.0	8	3.175	40	*******	*******	*******
Y1LX3.210	2.0	10	3.175	40	*******	*******	*******
Y1LX3.212	2.0	12	3.175	40	*******	*******	*******
Y1LX3.215	2.0	15	3.175	40	*******	*******	*******
Y1LX3.217	2.0	17	3.175	45	*******	*******	*******
Y1LX3.222	2.0	22	3.175	50	*******	*******	*******
Y1LX3.2.508	2.5	8	3.175	40	*******	*******	*******
Y1LX3.2.510	2.5	10	3.175	40	*******	*******	*******
Y1LX3.2.512	2.5	12	3.175	40	*******	*******	*******
Y1LX3.2.515	2.5	15	3.175	40	*******	*******	*******
Y1LX3.2.517	2.5	17	3.175	45	*******	*******	*******
Y1LX3.2.522	2.5	22	3.175	50	*******	*******	*******
Y1LX3.06	3.175	6	3.175	40	*******	*******	*******
Y1LX3.08	3.175	8	3.175	40	*******	*******	*******
Y1LX3.10	3.175	10	3.175	40	*******	*******	*******
Y1LX3.12	3.175	12	3.175	40	*******	*******	*******
Y1LX3.15	3.175	15	3.175	40	*******	*******	*******
Y1LX3.17	3.175	17	3.175	40	*******	*******	*******
Y1LX3.20	3.175	20	3.175	45	*******	*******	*******
Y1LX3.22	3.175	22	3.175	50	*******	*******	*******
Y1LX3.25	3.175	25	3.175	50	*******	*******	*******
Y1LX3.28	3.175	28	3.175	55	*******	*******	*******
Y1LX3.32	3.175	32	3.175	60	*******	*******	*******
Y1LX3.42	3.175	42	3.175	70	*******	*******	*******
Y1LX3.52	3.175	52	3.175	80	*******	*******	*******
Y1LX412	4	12	4	40	*******	*******	*******
Y1LX415	4	15	4	40	*******	*******	*******
Y1LX417	4	17	4	45	*******	*******	*******
Y1LX422	4	22	4	50	*******	*******	*******
Y1LX425	4	25	4	50	*******	*******	*******
Y1LX428	4	28	4	55	*******	*******	*******
Y1LX432	4	32	4	60	*******	*******	*******
Y1LX442	4	42	4	70	*******	*******	*******
Y1LX452	4	52	4	80	*******	*******	*******
Y1LX512	5	12	5	50	*******	*******	*******
Y1LX517	5	17	5	50	*******	*******	*******
Y1LX522	5	22	5	50	*******	*******	*******
Y1LX525	5	25	5	55	*******	*******	*******
Y1LX612	6	12	6	45	*******	*******	*******
Y1LX615	6	15	6	45	*******	*******	*******
Y1LX617	6	17	6	50	*******	*******	*******
Y1LX622	6	22	6	50	*******	*******	*******
Y1LX625	6	25	6	50	*******	*******	*******
Y1LX628	6	28	6	55	*******	*******	*******
Y1LX632	6	32	6	60	*******	*******	*******
Y1LX642	6	42	6	80	*******	*******	*******
Y1LX652	6	52	6	90	*******	*******	*******
Y1LX672	6	72	6	110	*******	*******	*******
Y1LX6208	2.0	8	6	50	*******	*******	*******
Y1LX6210	2.0	10	6	50	*******	*******	*******
Y1LX6212	2.0	12	6	50	*******	*******	*******
Y1LX6312	3.0	12	6	50	*******	*******	*******
Y1LX6317	3.0	17	6	50	*******	*******	*******
Y1LX6322	3.0	22	6	50	*******	*******	*******
Y1LX6417	4.0	17	6	50	*******	*******	*******
Y1LX6422	4.0	22	6	50	*******	*******	*******
Y1LX6517	5.0	17	6	50	*******	*******	*******
Y1LX6522	5.0	22	6	50	*******	*******	*******
Y1LX6.17	6.35	17	6	50	*******	*******	*******
Y1LX6.22	6.35	22	6	50	*******	*******	*******
Y1LX6.25	6.35	25	6	55	*******	*******	*******
Y1LX6.32	6.35	32	6	60	*******	*******	*******
Y1LX825	8	25	8	60	*******	*******	*******
Y1LX828	8	28	8	60	*******	*******	*******
Y1LX835	8	35	8	80	*******	*******	*******
Y1LX845	8	45	8	90	*******	*******	*******
Y1LX855	8	55	8	100	*******	*******	*******
Y1LX1025	10	25	10	60	*******	*******	*******
Y1LX1035	10	35	10	80	*******	*******	*******
Y1LX1045	10	45	10	90	*******	*******	*******
Y1LX1055	10	55	10	100	*******	*******	*******
Y1LX1225	12	25	12	70	*******	*******	*******
Y1LX1235	12	35	12	80	*******	*******	*******
Y1LX1245	12	45	12	90	*******	*******	*******
Y1LX1255	12	55	12	100	*******	*******	*******
Y1LX1645	16	45	16	100	*******	*******	*******
Y1LX1655	16	55	16	120	*******	*******	*******
Y1LX1665	16	65	16	140	*******	*******	*******
Y1LX1675	16	75	16	150	*******	*******	*******
