One flute spiral bits for pure aluminum

适合小功率主轴，高转速（15000以上）加工。
Good for: Low power spindle, high speed rotation above 15000 per minute processing.
订购产品须在编号前加材质编号:A, AA, 3A				Material: SOLID CARBIDE,硬质合金（钨钢）
Products must be ordered by adding the Materials Code Number like A, AA and 3A.				参考价格：人民币 PRICE(RMB)
编号	刃径	刃长	柄径	总长	A系列	AA系列	3A系列

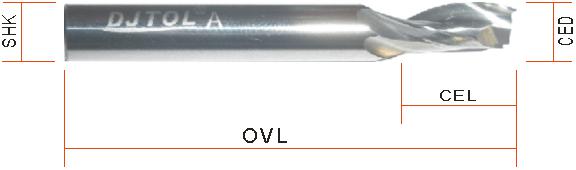

PART NO	CED	CEL	SHK	OVL	A series	AA series	3A series
CL1LX3.1.503	1.5	3	3.175	40	*******	*******	*******
CL1LX3.204	2.0	4	3.175	40	*******	*******	*******
CL1LX3.2.504	2.5	4	3.175	40	*******	*******	*******
CL1LX3.06	3.175	6	3.175	40	*******	*******	*******
CL1LX3.08	3.175	8	3.175	40	*******	*******	*******
CL1LX3.10	3.175	10	3.175	40	*******	*******	*******
CL1LX3.12	3.175	12	3.175	40	*******	*******	*******
CL1LX408	4	8	4	40	*******	*******	*******
CL1LX410	4	10	4	40	*******	*******	*******
CL1LX412	4	12	4	40	*******	*******	*******
CL1LX415	4	15	4	45	*******	*******	*******
CL1LX512	5	12	5	45	*******	*******	*******
CL1LX514	5	14	5	45	*******	*******	*******
CL1LX6308	3.0	8	6	50	*******	*******	*******
CL1LX6410	4.0	10	6	50	*******	*******	*******
CL1LX6514	5.0	14	6	50	*******	*******	*******
CL1LX612	6	12	6	45	*******	*******	*******
CL1LX615	6	15	6	45	*******	*******	*******
CL1LX617	6	17	6	50	*******	*******	*******
CL1LX622	6	22	6	50	*******	*******	*******
CL1LX820	8	20	8	60	*******	*******	*******
