ONE FLUTE SPIRAL BITS FOR SOLID WOOD

适合：实木，密度板，多层板等。国产材质请选用通用单刃刀具。 Good for:Solid wood,MDF,Multilayer board and so on.
订购产品须在编号前加材质编号:A, AA, 3A					Material: SOLID CARBIDE,硬质合金（钨钢）
Products must be ordered by adding the Materials Code Number like A, AA and 3A.					参考价格：人民币 PRICE(RMB)
型号	刃径	刃长	柄径	总长	A系列	AA系列	3A系列

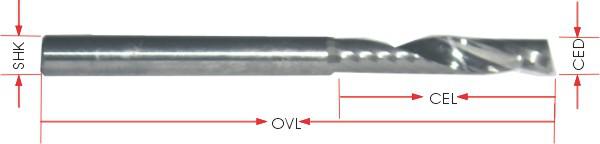

PART NO	CED	CEL	SHK	OVL	A series	AA series	3A series
M1LX3.08	3.175	8	3.175	40	*******	*******	*******
M1LX3.10	3.175	10	3.175	40	*******	*******	*******
M1LX3.12	3.175	12	3.175	40	*******	*******	*******
M1LX3.15	3.175	15	3.175	40	*******	*******	*******
M1LX3.17	3.175	17	3.175	40	*******	*******	*******
M1LX3.22	3.175	22	3.175	45	*******	*******	*******
M1LX412	4	12	4	40	*******	*******	*******
M1LX415	4	15	4	40	*******	*******	*******
M1LX417	4	17	4	45	*******	*******	*******
M1LX422	4	22	4	50	*******	*******	*******
M1LX425	4	25	4	50	*******	*******	*******
M1LX428	4	28	4	55	*******	*******	*******
M1LX432	4	32	4	60	*******	*******	*******
M1LX517	5	17	5	45	*******	*******	*******
M1LX522	5	22	5	50	*******	*******	*******
M1LX525	5	25	5	50	*******	*******	*******
M1LX617	6	17	6	50	*******	*******	*******
M1LX622	6	22	6	50	*******	*******	*******
M1LX625	6	25	6	50	*******	*******	*******
M1LX628	6	28	6	55	*******	*******	*******
M1LX632	6	32	6	60	*******	*******	*******
M1LX635	6	35	6	65	*******	*******	*******
M1LX642	6	42	6	80	*******	*******	*******
M1LX652	6	52	6	90	*******	*******	*******
M1LX6.17	6.35	17	6.35	50	*******	*******	*******
M1LX6.22	6.35	22	6.35	50	*******	*******	*******
M1LX6.25	6.35	25	6.35	55	*******	*******	*******
M1LX6.35	6.35	35	6.35	70	*******	*******	*******
M1LX825	8	25	8	60	*******	*******	*******
M1LX835	8	35	8	80	*******	*******	*******
M1LX845	8	45	8	90	*******	*******	*******
M1LX1025	10	25	10	60	*******	*******	*******
M1LX1035	10	35	10	80	*******	*******	*******
M1LX1045	10	45	10	90	*******	*******	*******
M1LX12.35	12.7	35	12.7	80	*******	*******	*******
M1LX12.45	12.7	45	12.7	90	*******	*******	*******
M1LX12.55	12.7	55	12.7	100	*******	*******	*******
M1LX1675	16	75	16	150	*******	*******	*******
M1LX2075	20	75	20	150	*******	*******	*******
