One flute spiral slope flat bits

适合: 迷你字雕刻，压克力，PVC，密度板，木板等深斜面雕刻
Good for: Fine three-dimensional relief on Acrylic, PVC, MDF, Hardwood, Aluminum and so on.
订购产品须在编号前加材质编号:N ,A, AA, 3A						Material: SOLID CARBIDE,硬质合金（钨钢）
Products must be ordered by adding the Materials Code Number like N, A, AA and 3A .						参考价格：人民币 PRICE(RMB)

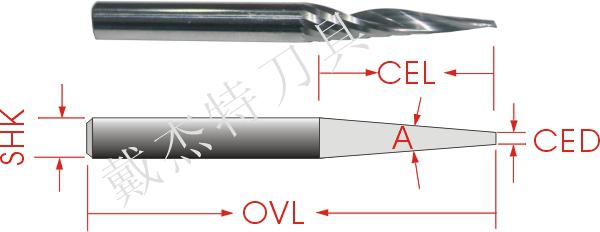

编号	刀尖	刃长	角度	柄径	总长	N系列	A系列	AA系列	3A系列
PART NO	CED	CEL	A	SHK	OVL	N series	A series	AA series	3A series
X1LX62010	1.0	20	10	6	50	*******	*******	*******	*******
X1LX83520	2.0	35	10	8	75	*******	*******	*******	*******
X1LX122210	1.0	22	30	12	60	*******	*******	*******	*******
X1LX6122210	1.0	22	30	6-12	60	*******	*******	*******	*******
X1LX142520	2.0	25	30	14	70	*******	*******	*******	*******
X1LX162820	2.0	28	30	16	80	*******	*******	*******	*******
X1LX203020	2.0	30	30	20	100	*******	*******	*******	*******
