Home>Metal mould tools>metal mould engraving tools series

One spiral flute engraving bits

适用: 铁，铜，铝，钢，不锈钢，压克力，硬度，高密度板
Good for: Iron, Copper, Aluminum, Steel, Stainless steel, Hardness, High density fiber board (HDF).
订购产品须在编号前加材质编号:A, AA, 3A					Material: SOLID CARBIDE,硬质合金（钨钢）
Products must be ordered by adding the Materials Code Number like A, AA and 3A .					参考价格：人民币 PRICE(RMB)

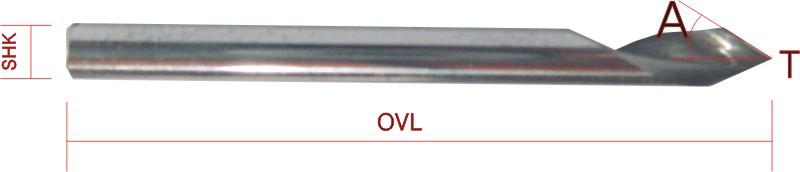

编号	刀尖	角度	柄径	总长	A系列	AA系列	3A系列
PART NO	T	2A	SHK	OVL	A series	AA series	3A series
LJ3.2502	0.2	25	3.175	38	*******	*******	*******
LJ3.2504	0.4	25	3.175	38	*******	*******	*******
LJ3.3002	0.2	30	3.175	38	*******	*******	*******
LJ3.3003	0.3	30	3.175	38	*******	*******	*******
LJ3.3004	0.4	30	3.175	38	*******	*******	*******
LJ3.3005	0.5	30	3.175	38	*******	*******	*******
LJ3.3602	0.2	36	3.175	38	*******	*******	*******
LJ3.3603	0.3	36	3.175	38	*******	*******	*******
LJ3.3605	0.5	36	3.175	38	*******	*******	*******
LJ3.4002	0.2	40	3.175	38	*******	*******	*******
LJ3.4003	0.3	40	3.175	38	*******	*******	*******
LJ3.4502	0.2	45	3.175	38	*******	*******	*******
LJ3.4504	0.4	45	3.175	38	*******	*******	*******
LJ3.6002	0.2	60	3.175	38	*******	*******	*******
LJ3.6004	0.4	60	3.175	38	*******	*******	*******
LJ42502	0.2	25	4	40	*******	*******	*******
LJ42503	0.3	25	4	40	*******	*******	*******
LJ42504	0.4	25	4	40	*******	*******	*******
LJ43002	0.2	30	4	40	*******	*******	*******
LJ43003	0.3	30	4	40	*******	*******	*******
LJ43004	0.4	30	4	40	*******	*******	*******
LJ43005	0.5	30	4	40	*******	*******	*******
LJ44502	0.2	45	4	40	*******	*******	*******
LJ44503	0.3	45	4	40	*******	*******	*******
LJ44505	0.5	45	4	40	*******	*******	*******
LJ46002	0.2	60	4	40	*******	*******	*******
LJ46003	0.3	60	4	40	*******	*******	*******
LJ46005	0.5	60	4	40	*******	*******	*******
LJ49002	0.2	90	4	40	*******	*******	*******
LJ64502	0.2	45	6	40	*******	*******	*******
LJ64503	0.3	45	6	40	*******	*******	*******
LJ64505	0.5	45	6	40	*******	*******	*******
LJ66002	0.2	60	6	40	*******	*******	*******
LJ66005	0.5	60	6	40	*******	*******	*******
LJ69002	0.2	90	6	40	*******	*******	*******
