One straight flute engraving bits

适用: 铁，铜，铝，钢，不锈钢，压克力，硬度，高密度板
Good for: Iron, Copper, Aluminum, Steel, Stainless steel, Hardness, High density fiber board (HDF).
订购产品须在编号前加材质编号:A, AA, 3A					Material: SOLID CARBIDE,硬质合金（钨钢）
Products must be ordered by adding the Materials Code Number like A, AA and 3A .					参考价格：人民币 PRICE(RMB)
编号	刀尖	角度	柄径	总长	A系列	AA系列	3A系列

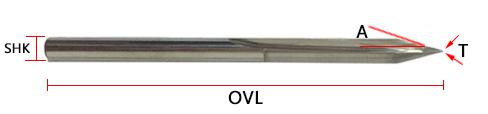

PART NO	T	2A	SHK	OVL	A series	AA series	3A series
1ZJ3.2002	0.2	20	3.175	38	*******	*******	*******
1ZJ3.2003	0.3	20	3.175	38	*******	*******	*******
1ZJ3.2004	0.4	20	3.175	38	*******	*******	*******
1ZJ3.2502	0.2	25	3.175	38	*******	*******	*******
1ZJ3.2503	0.3	25	3.175	38	*******	*******	*******
1ZJ3.2504	0.4	25	3.175	38	*******	*******	*******
1ZJ3.2505	0.5	25	3.175	38	*******	*******	*******
1ZJ3.3002	0.2	30	3.175	38	*******	*******	*******
1ZJ3.3003	0.3	30	3.175	38	*******	*******	*******
1ZJ3.3004	0.4	30	3.175	38	*******	*******	*******
1ZJ3.3005	0.5	30	3.175	38	*******	*******	*******
1ZJ3.4002	0.2	40	3.175	38	*******	*******	*******
1ZJ3.4003	0.3	40	3.175	38	*******	*******	*******
1ZJ42502	0.2	25	4	40	*******	*******	*******
1ZJ42503	0.3	25	4	40	*******	*******	*******
1ZJ42504	0.4	25	4	40	*******	*******	*******
1ZJ43002	0.2	30	4	40	*******	*******	*******
1ZJ43003	0.3	30	4	40	*******	*******	*******
1ZJ43004	0.4	30	4	40	*******	*******	*******
1ZJ44002	0.2	40	4	40	*******	*******	*******
1ZJ44005	0.5	40	4	40	*******	*******	*******
1ZJ44502	0.2	45	4	40	*******	*******	*******
1ZJ44505	0.5	45	4	40	*******	*******	*******
1ZJ46002	0.2	60	4	40	*******	*******	*******
1ZJ62503	0.3	25	6	45	*******	*******	*******
1ZJ62504	0.4	25	6	45	*******	*******	*******
1ZJ62505	0.5	25	6	45	*******	*******	*******
1ZJ63002	0.2	30	6	45	*******	*******	*******
1ZJ63003	0.3	30	6	45	*******	*******	*******
1ZJ63004	0.4	30	6	45	*******	*******	*******
1ZJ64003	0.3	40	6	45	*******	*******	*******
1ZJ64004	0.4	40	6	45	*******	*******	*******
1ZJ64005	0.5	40	6	45	*******	*******	*******
1ZJ64503	0.3	40	6	45	*******	*******	*******
1ZJ64504	0.4	40	6	45	*******	*******	*******
1ZJ66003	0.3	60	6	45	*******	*******	*******
1ZJ66005	0.5	60	6	45	*******	*******	*******
1ZJ69002	0.2 3.	90	6	45	*******	*******	*******
