THREE FLUTE UP&DOWN CUT DOUBLE FLUTES SPIRAL BITS

适用:密度板，PVC，贴皮板，原生木等
Good for: MDF, PVC, Board with lagging, log.
订购产品须在编号前加材质编号:N,A,AA,3A					Material: SOLID CARBIDE,硬质合金（钨钢）
Products must be ordered by adding the Materials Code Number like N,A, AA and 3A.					参考价格：人民币 PRICE(RMB)

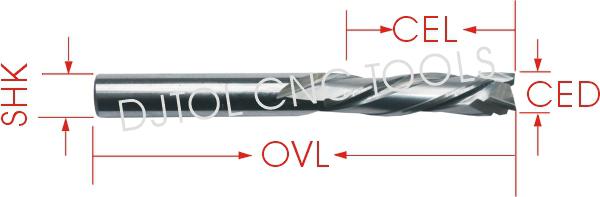

编号	刃径	刃长	柄径	总长	N 系列	A系列	AA系列	3A系列
PART NO	CED	CEL	SHK	OVL	N series	A series	AA series	3A series
3FLX617	6	17	6	50	*******	*******	*******	*******
3FLX622	6	22	6	60	*******	*******	*******	*******
3FLX625	6	25	6	60	*******	*******	*******	*******
3FLX628	6	28	6	70	*******	*******	*******	*******
3FLX635	6	35	6	80	*******	*******	*******	*******
3FLX820	8	20	8	60	*******	*******	*******	*******
3FLX825	8	25	8	60	*******	*******	*******	*******
3FLX835	8	35	8	80	*******	*******	*******	*******
3FLX1025	10	25	10	70	*******	*******	*******	*******
3FLX1035	10	35	10	80	*******	*******	*******	*******
3FLX1045	10	45	10	90	*******	*******	*******	*******
3FLX1235	12	35	12	90	*******	*******	*******	*******
3FLX1245	12	45	12	100	*******	*******	*******	*******
3FLX1255	12	55	12	110	*******	*******	*******	*******
3FLX12.35	12.7	35	12.7	90	*******	*******	*******	*******
3FLX12.45	12.7	45	12.7	100	*******	*******	*******	*******
3FLX12.55	12.7	55	12.7	110	*******	*******	*******	*******
3FLX1645	16	45	16	120	*******	*******	*******	*******
3FLX1655	16	55	16	130	*******	*******	*******	*******
3FLX1675	16	75	16	150	*******	*******	*******	*******
3FLX2045	20	45	20	120	*******	*******	*******	*******
3FLX2075	20	75	20	150	*******	*******	*******	*******
