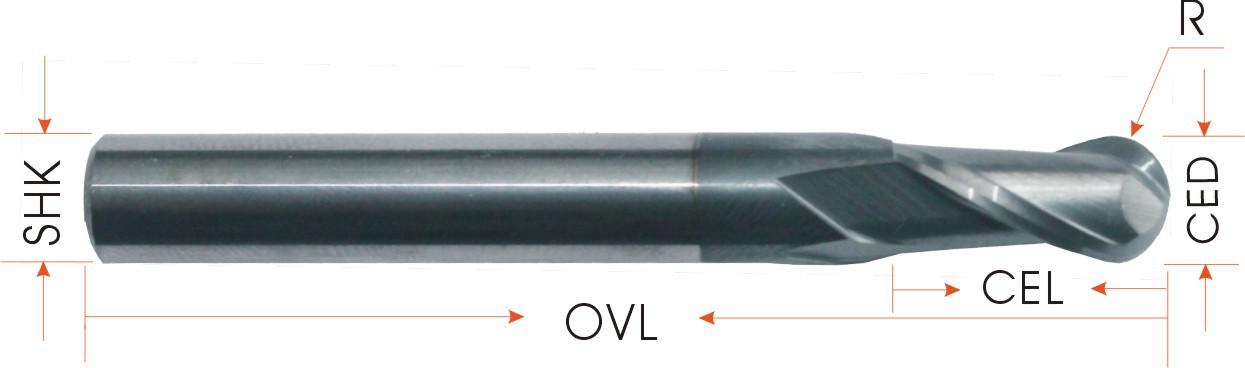

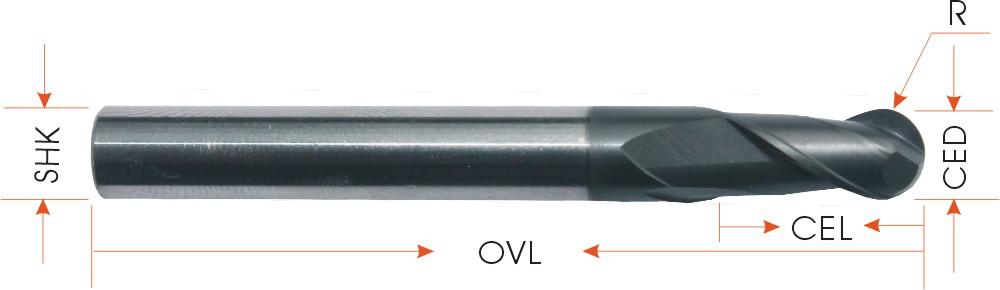

Two flutes ball nose end mills
A---银黑色

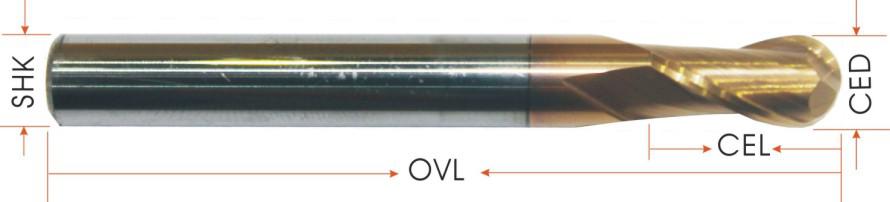

AA---古铜色
3A---黑色
|
A 适合加工硬度45HRC，AA 适合加工硬度50HRC，3A适合加工硬度HRC60 | |||||||
|
A series are good for processing rigidity up to 45 HRC, AA series are good for processing rigidity up to 50HRC, 3A are good for processing rigidity up to HRC60. | |||||||
|
订购产品须在编号前加材质编号:A, AA, 3A |
Material: SOLID CARBIDE,硬质合金（钨钢） | ||||||
|
Products must be ordered by adding the Materials Code Number like A, AA and 3A . |
参考价格：人民币 PRICE(RMB) | ||||||
|
编号 |
刃径 |
刃长 |
柄径 |
总长 |
A系列 50° |
AA系列 55° |
3A系列 60° |
|
PART NO |
CED |
CEL |
SHK |
OVL |
A series 50° |
AA series 55° |
3A series 60° |
|
S2QX01 |
1.0 |
3 |
4.0 |
50 |
*** |
*** |
*** |
|
S2QX015 |
1.5 |
4 |
4.0 |
50 |
*** |
*** |
*** |
|
S2QX02 |
2.0 |
4 |
4.0 |
50 |
*** |
*** |
*** |
|
S2QX025 |
2.5 |
5 |
4.0 |
50 |
*** |
*** |
*** |
|
S2QX03 |
3.0 |
6 |
4.0 |
50 |
*** |
*** |
*** |
|
S2QX035 |
3.5 |
7 |
4.0 |
50 |
*** |
*** |
*** |
|
S2QX04 |
4.0 |
8 |
4.0 |
50 |
*** |
*** |
*** |
|
S2QX04L-A |
4.0 |
12 |
4.0 |
75 |
*** |
*** |
*** |
|
S2QX04L-B |
4.0 |
16 |
4.0 |
100 |
*** |
*** |
*** |
|
S2QX05 |
5.0 |
10 |
6.0 |
50 |
*** |
*** |
*** |
|
S2QX06 |
6.0 |
12 |
6.0 |
50 |
*** |
*** |
*** |
|
S2QX06L-A |
6.0 |
18 |
6.0 |
75 |
*** |
*** |
*** |
|
S2QX06L-B |
6.0 |
24 |
6.0 |
100 |
*** |
*** |
*** |
|
S2QX06L-C |
6.0 |
36 |
6.0 |
150 |
*** |
*** |
*** |
|
S2QX08 |
8.0 |
16 |
8.0 |
60 |
*** |
*** |
*** |
|
S2QX08L-A |
8.0 |
20 |
8.0 |
75 |
*** |
*** |
*** |
|
S2QX08L-B |
8.0 |
25 |
8.0 |
100 |
*** |
*** |
*** |
|
S2QX08L-C |
8.0 |
40 |
8.0 |
150 |
*** |
*** |
*** |
|
S2QX10 |
10.0 |
20 |
10.0 |
75 |
*** |
*** |
*** |
|
S2QX10L-B |
10.0 |
25 |
10.0 |
100 |
*** |
*** |
*** |
|
S2QX10L-C |
10.0 |
40 |
10.0 |
150 |
*** |
*** |
*** |
|
S2QX12 |
12.0 |
24 |
12.0 |
75 |
*** |
*** |
*** |
|
S2QX12L-B |
12.0 |
30 |
12.0 |
100 |
*** |
*** |
*** |
|
S2QX12L-C |
12.0 |
50 |
12.0 |
150 |
*** |
*** |
*** |
|
S2QX14 |
14.0 |
28 |
14.0 |
80 |
*** |
*** |
*** |
|
S2QX14L-B |
14.0 |
35 |
14.0 |
100 |
*** |
*** |
*** |
|
S2QX14L-C |
14.0 |
50 |
14.0 |
150 |
*** |
*** |
*** |
|
S2QX16 |
16.0 |
32 |
16.0 |
100 |
*** |
*** |
*** |
|
S2QX16L-C |
16.0 |
60 |
16.0 |
150 |
*** |
*** |
*** |
|
S2QX18 |
18.0 |
36 |
18.0 |
100 |
*** |
*** |
*** |
|
S2QX18L-C |
18.0 |
60 |
18.0 |
150 |
*** |
*** |
*** |
|
S2QX20 |
20.0 |
40 |
20.0 |
100 |
*** |
*** |
*** |
|
S2QX20L-C |
20.0 |
60 |
20.0 |
150 |
*** |
*** |
*** |
