TWO LARGE FLUTES SPIRAL BALL NOSE

适用: 密度板，多层板，夹板等
Good for: MDF, Multilayer board, Plywood and so on.
订购产品须在编号前加材质编号:N,A, AA, 3A					Material: SOLID CARBIDE,硬质合金（钨钢）
Products must be ordered by adding the Materials Code Number like N,A, AA and 3A .					参考价格：人民币 PRICE(RMB)

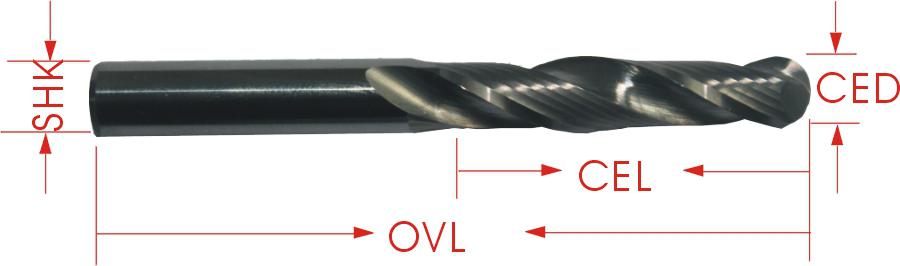

编号	刃径	刃长	柄径	总长	N 系列	A系列	AA系列	3A系列
PART NO	CED	CEL	SHK	OVL	N series	A series	AA series	3A series
M2QX3.12	3.175	12	3.175	38	*******	*******	*******	*******
M2QX3.17	3.175	17	3.175	38	*******	*******	*******	*******
M2QX3.22	3.175	22	3.175	45	*******	*******	*******	*******
M2QX412	4	12	4	40	*******	*******	*******	*******
M2QX417	4	17	4	40	*******	*******	*******	*******
M2QX422	4	22	4	45	*******	*******	*******	*******
M2QX425	4	25	4	50	*******	*******	*******	*******
M2QX617	6	17	6	45	*******	*******	*******	*******
M2QX622	6	22	6	50	*******	*******	*******	*******
M2QX625	6	25	6	55	*******	*******	*******	*******
M2QX6.17	6	17	6.35	50	*******	*******	*******	*******
M2QX6.22	6	22	6.35	50	*******	*******	*******	*******
M2QX6.25	6	25	6.35	55	*******	*******	*******	*******
M2QX825	8	25	8	60	*******	*******	*******	*******
M2QX835	8	35	8	80	*******	*******	*******	*******
M2QX845	8	45	8	90	*******	*******	*******	*******
M2QX855	8	55	8	100	*******	*******	*******	*******
M2QX1035	10	35	10	80	*******	*******	*******	*******
M2QX1045	10	45	10	90	*******	*******	*******	*******
M2QX1055	10	55	10	100	*******	*******	*******	*******
M2QX1235	12	30	12	80	*******	*******	*******	*******
M2QX1245	12	45	12	90	*******	*******	*******	*******
M2QX1255	12	55	12	100	*******	*******	*******	*******
M2QX12.35	12	35	12.7	80	*******	*******	*******	*******
M2QX12.45	12	45	12.7	90	*******	*******	*******	*******
M2QX12.55	12	55	12.7	100	*******	*******	*******	*******
