UP&DOWN CUT ONE FLUTE SPIRAL BITS

适用:PVC，芙蓉板，软木，各种复合板等
Good for: PVC, Lotus board,Soft wood,and All kinds of Composite board.
订购产品须在编号前加材质编号:A, AA, 3A					Material: SOLID CARBIDE,硬质合金（钨钢）
Products must be ordered by adding the Materials Code Number like A, AA and 3A .					参考价格：人民币 PRICE(RMB)
编号	刃径	刃长	柄径	总长	A系列	AA系列	3A系列

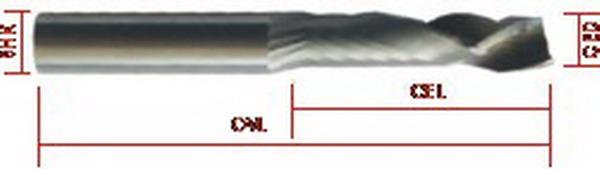

PART NO	CED	CEL	SHK	OVL	A series	AA series	3A series
1FLX3.10	3.175	10	3.175	40	*******	*******	*******
1FLX3.12	3.175	12	3.175	40	*******	*******	*******
1FLX3.17	3.175	17	3.175	45	*******	*******	*******
1FLX3.22	3.175	22	3.175	50	*******	*******	*******
1FLX3.25	3.175	25	3.175	60	*******	*******	*******
1FLX3.32	3.175	32	3.175	70	*******	*******	*******
1FLX412	4	12	4	45	*******	*******	*******
1FLX417	4	17	4	50	*******	*******	*******
1FLX422	4	22	4	50	*******	*******	*******
1FLX425	4	25	4	55	*******	*******	*******
1FLX432	4	32	4	65	*******	*******	*******
1FLX442	4	42	4	70	*******	*******	*******
1FLX452	4	52	4	80	*******	*******	*******
1FLX517	5	17	5	50	*******	*******	*******
1FLX522	5	22	5	60	*******	*******	*******
1FLX612	6	12	6	50	*******	*******	*******
1FLX617	6	17	6	50	*******	*******	*******
1FLX622	6	22	6	60	*******	*******	*******
1FLX625	6	25	6	65	*******	*******	*******
1FLX628	6	28	6	70	*******	*******	*******
1FLX632	6	32	6	80	*******	*******	*******
1FLX645	6	45	6	90	*******	*******	*******
1FLX655	6	55	6	100	*******	*******	*******
1FLX675	6	75	6	120	*******	*******	*******
1FLX825	8	25	8	70	*******	*******	*******
1FLX835	8	35	8	80	*******	*******	*******
1FLX845	8	45	8	90	*******	*******	*******
1FLX855	8	55	8	100	*******	*******	*******
1FLX875	8	75	8	120	*******	*******	*******
1FLX1025	10	25	10	70	*******	*******	*******
1FLX1035	10	35	10	80	*******	*******	*******
1FLX1045	10	45	10	90	*******	*******	*******
1FLX1055	10	55	10	100	*******	*******	*******
1FLX1075	10	75	10	130	*******	*******	*******
1FLX1235	12	35	12	90	*******	*******	*******
1FLX1245	12	45	12	100	*******	*******	*******
1FLX1255	12	55	12	110	*******	*******	*******
1FLX1275	12	75	12	140	*******	*******	*******
1FLX12100	12	100	12	170	*******	*******	*******
